Configuration

Configuration lets administrators manage Account level settings and configure tunnels.

Account Settings

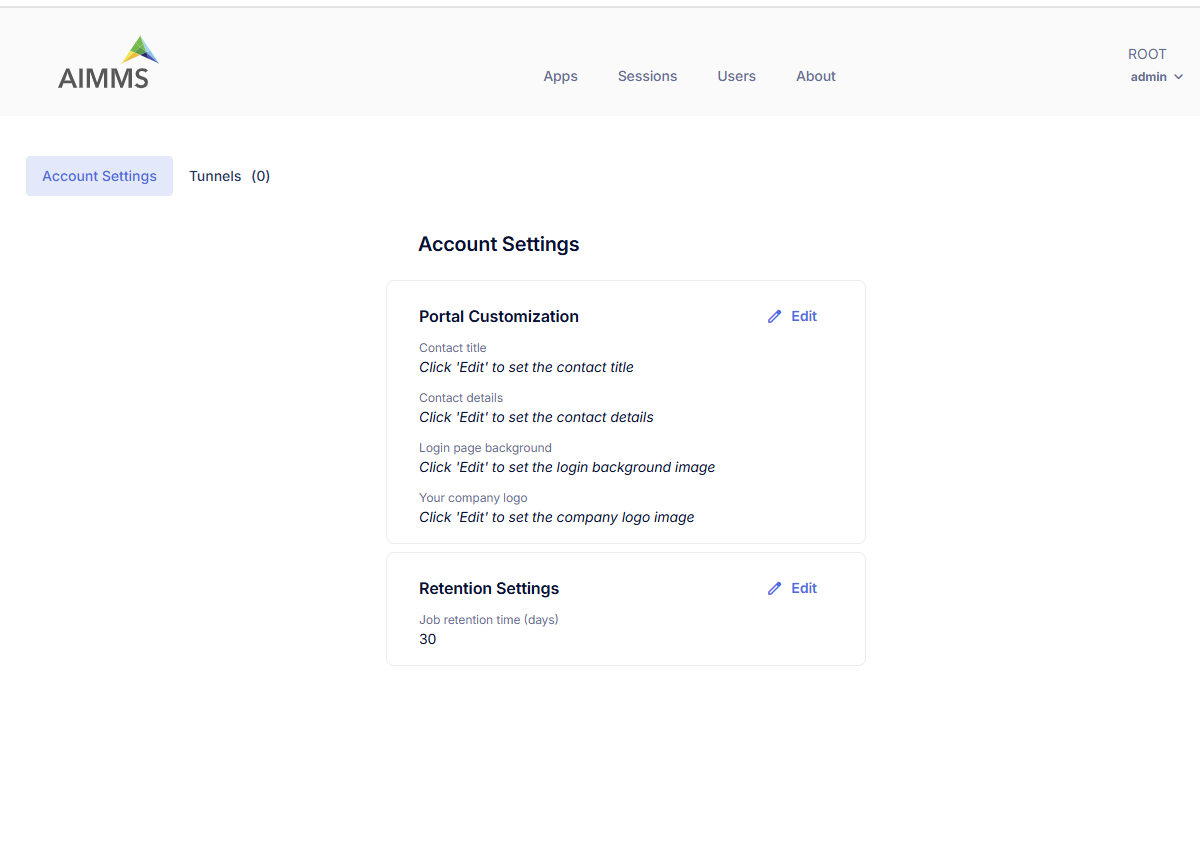

The Account Settings page allows administrators to manage portal appearance and retention settings for sessions.

../_images/newportal-configuration.png

Portal Customization

These settings allows you to customize your AIMMS PRO Portal where you can upload Image for Login page and your Company logo. You can also specify in-house support contact details which will be displayed on all Portal Pages. (see below).

You need to specify following fields:

  • Contact Title - The title for the support contact block (plain text).

  • Contact Text - The text for the support contact block. This can contain any HTML.

  • Login Page Background - Background Image for the left-hand side of the login screen (JPEG, PNG or GIF). Image width should be between 640 and 2500 and image height should be between 800 and 2500.

  • Your Company Logo - Logo for all portal pages except login page (JPEG, PNG or GIF). Image width should be between 10 and 120 and image height should be between 10 and 80.

Retention Settings

This section allows you to set retention time (in days) after which a sessions (WebUI and Solve sessions) will be removed from the list. Default retention time is 30 days.

Tunnels

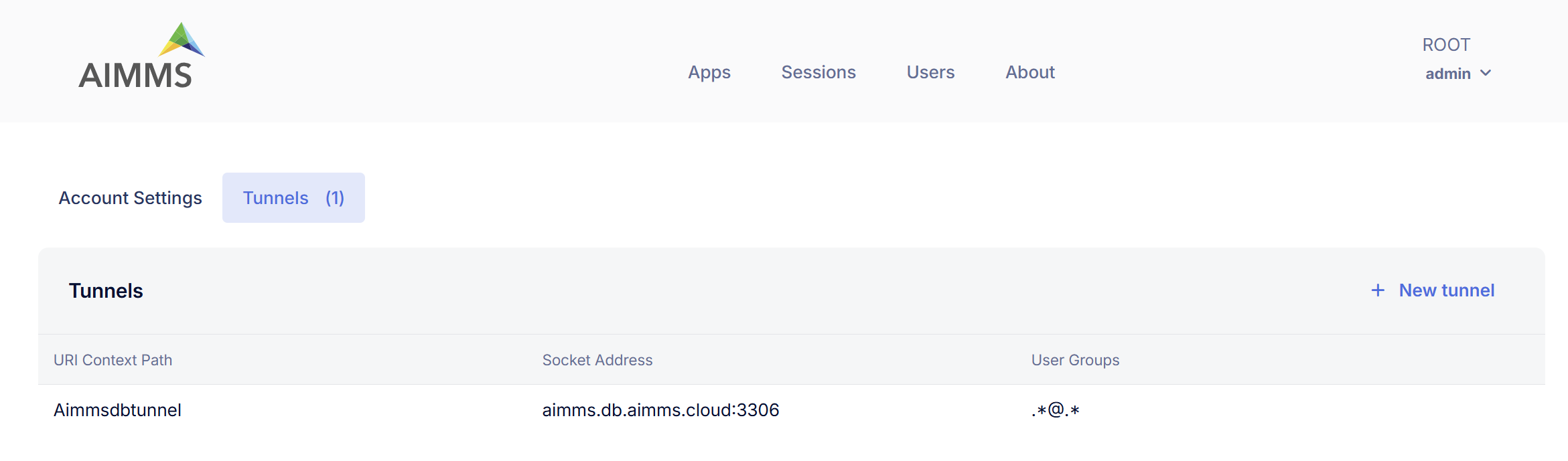

AIMMS PRO allows the AIMMS PRO Client to connect to the AIMMS license server and the AIMMS PRO backend via a websockets proxy running on the web port of PRO (the only port that needs to be opened in case PRO is running behind a firewall, by default 8080). By using the PRO Configurator to enable the tunneling functionality, any port and host reachable by PRO (but not by the client) can be made available via the websockets proxy.

../_images/newportal-tunnels.png
